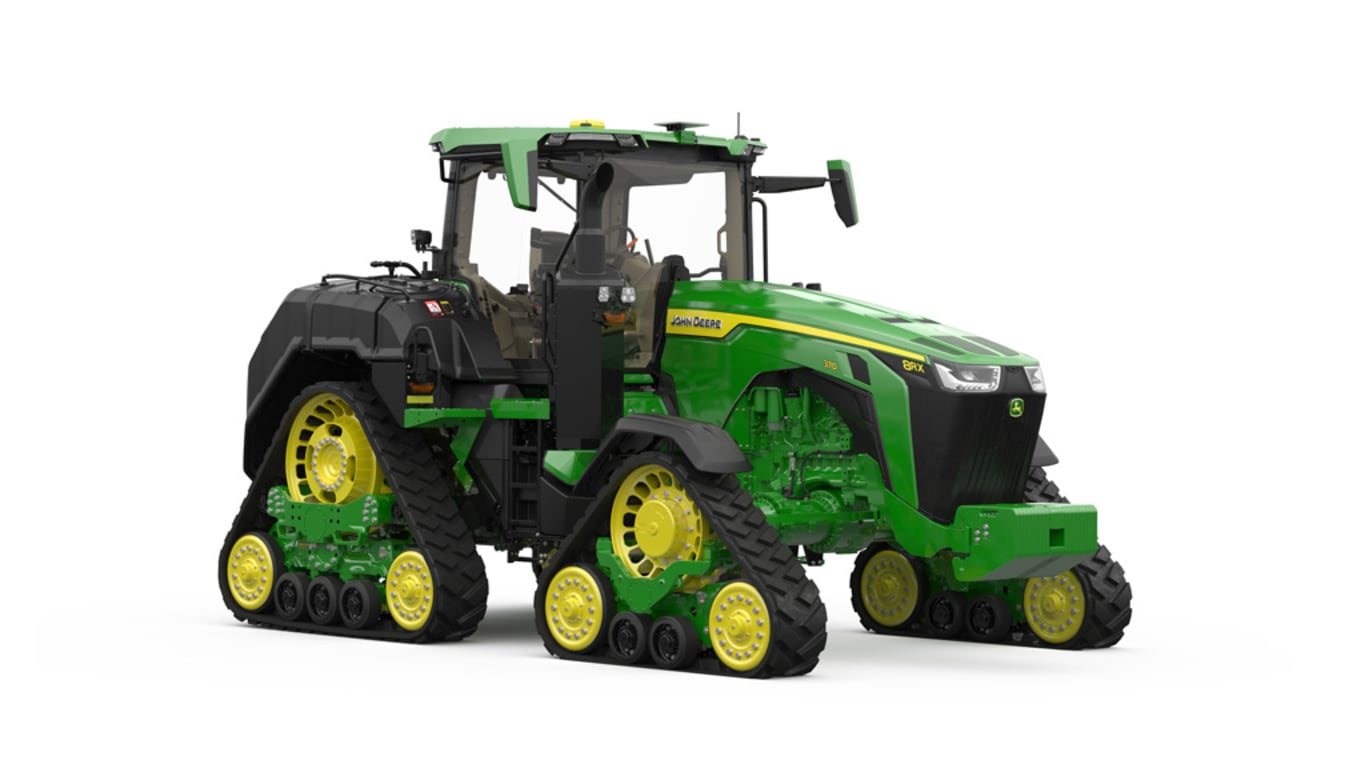

New 8RX 370 HP: 407 Max¹ / 370 Rated²

Row-Crop Tractors

REQUEST A QUOTE

REQUEST A QUOTE

Key Features

Updated controls and displays for enhanced operator experience
Fully integrated planting solution with EVT, 56V (15kW) electric power generation, and ExactRate™ tank options
CommandView™ 4 Plus cab with increased floor space³
Fully integrated precision ag technology and Autonomy Ready

Expand All

Features

Specifications

Key Specs

Engine Make

John Deere

Engine Model

JD9

Engine Family

VJDXL09.0333

Displacement (L)

Displacement (cu in.)

549

Rated Engine Power (hp)

365

Rated Engine Power (kw)

272

Rated Engine Power (PS)

370

Maximum Engine Power (hp)

401

Maximum Engine Power (kW)

299

Maximum Engine Power (PS)

407

Transmission Type

Standard: e23™ PowerShift™ 40K, 40 km/h
24.9 mph
Optional: John Deere eAutoPowr™ EVT™ 40K, 0.05-42 km/h
0.03-26 mph

Rear Hitch Category (SAE Designation)

Category 4N/3 at 610 mm (24 in.) behind hitch point: 9,072 kg
20,000 lb
Optional: Category 4N/3 at 610 mm (24 in.) behind hitch point: 6,803 kg
15,000 lb

Pump Rated Output

Standard: 85-cc pump: 227.1 L/min
60 gpm
Optional: 85-cc plus 35-cc dual pump: 318 L/min
84 gpm

Base Machine Weight (lb)

43,300

Base Machine Weight (kg)

19,600

Machine Configuration

Wheel or Track Configuration

2-Track

Drive Type

Engine

Engine Make

John Deere

Engine Model

JD9

Engine Family

VJDXL09.0333

Emissions Certifications

Final Tier 4

Displacement (L)

Displacement (cu in.)

549

Aspiration

Dual turbochargers, variable geometry turbo with fixed geometry turbo in series; air-to-air aftercooling and cooled exhaust gas recirculation

Number of Cylinders

Six

Cylinder Liners

Wet-sleeve

Aftertreatment Type

Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR)

Intelligent Power Management (IPM)

Rated Engine Speed (rpm)

2,100

Rated Engine Power (hp)

365

Rated Engine Power (kW)

272

Rated Engine Power (PS)

370

Rated Engine Power with IPM (hp)

Rated Engine Power with IPM (kw)

Rated Engine Power with IPM (PS)

Engine Torque at Rated Speed (lb-ft)

1,277

Engine Torque at Rated Speed (Nm)

1,732

Maximum Engine Speed (rpm)

Maximum Engine Power (hp)

401

Maximum Engine Power (kW)

299

Maximum Engine Power (PS)

407

Maximum Engine Power with IPM (hp)

Maximum Engine Power with IPM (kW)

Maximum Engine Power with IPM (PS)

Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (hp)

Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (KW)

Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (PS)

Maximum Engine Torque

At 1,600 rpm: 1,732 Nm
1,277 lb-ft

Constant Power Range

Power Bulge (%)

Bore and Stroke (in.)

Bore and Stroke (mm)

Compression Ratio

Lubrication

Cooling System Type

Fuel Type

Diesel

Alternative Fuel Type

B30 Diesel Compatible

Air Cleaner Type

Torque Rise (%)

Transmission

Transmission Type

Standard: e23™ PowerShift™ 40K, 40 km/h
24.9 mph
Optional: John Deere eAutoPowr™ EVT™ 40K, 0.05-42 km/h
0.03-26 mph

Maximum Speed Forward

42 km/h
26 mph

Minimum Speed Forward

0.05 km/h
0.03 mph

Creeper

Reverser

Clutch

Cruise Control

Rear Power Take-Off (PTO)

PTO Category

Standard: 45 mm
1.75 in.
20-spline, 1,000 rpm
Optional: 45 mm
20-spline, 1000/1000E rpm

Optional PTO Category

Rated PTO Power (hp)

310

Rated PTO Power (kW)

231

Rated PTO Power (PS)

314

Rated PTO Power with IPM (hp)

Rated PTO Power with IPM (kW)

Rated PTO Power with IPM (PS)

Economy PTO Speeds

1000E rpm

Engine rpm at Rated PTO Speeds (540/1.000)

1810 / 1995

Engine rpm at Rated PTO Speeds (540/540E/1.000)

Engine rpm at Rated PTO Speeds (540E/1000/1.000E)

-- / 1995 / 1590

Engine rpm at Rated PTO Speeds (1000/1000E/1.300)

Engagement Method

Electrohydraulic with adjustable modulation

PTO Clutch

Number of Splines

Brake (For Mid and Rear PTO)

Front PTO

Front PTO Category

PTO Speed

Front PTO Rotation

Front Rated PTO Power (hp)

Front Rated PTO Power (kW)

Front Rated PTO Power (PS)

Engine rpm (at Rated PTO Speeds)

Maximum PTO Power (hp)

Maximum PTO Power (kW)

Maximum PTO Power (PS)

Engine rpm (at Maximum PTO Speeds) (rpm)

Front Number of Splines

Front Hitch

Front Hitch Category

Lift Capacity Through Full Lift Range at Coupling Points (lb)

Lift Capacity Through Full Lift Range at Coupling Points (kg)

Maximum Lift Capacity at Coupling Points (lb)

Maximum Lift Capacity at Coupling Points (kg)

Number of Front Selective Control Valves (SCVs)

Electric Power

Rear Hitch

Rear Hitch Category (SAE Designation)

Category 4N/3

Maximum Lift Capacity Directly at Coupling Points

Lift Capacity Through Full Lift Range Directly at Coupling Points

Maximum Lift Capacity at 610-mm Behind Hitch Point

9,072 kg
20,000 lb

Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point

6,803 / 9,072 kg
15,000 / 20,000 lb

Sensing Type

Electrohydraulic

Draft Control Sensing

Drawbar

Drawbar Category

Standard: Category 4 with heavy-duty support
Optional: Category 4

Maximum Vertical Load

Standard: 4,990 kg
11,000 lb
Optional: 2,245 kg
4,950 lb

Hydraulics

Hydraulic System Type

Closed-center, pressure/flow compensated system with load sensing

Pump Rated Output

Standard: 85-cc pump: 227.1 L/min
60 gpm
Optional: 85-cc plus 35-cc dual pump: 318 L/min
84 gpm

Maximum Operating Pressure (psi)

Maximum Operating Pressure (bar)

Number of Rear Selective Control Valves (SCVs)

Standard: 1.3-cm (1/2-in.) ISO couplers: four
Optional: 1.3-cm (1/2-in.) ISO couplers: five and six available

Available Flow at a Single Rear SCV

1.3-cm (1/2-in.) couplers: 132 L/min
35 gpm

Hydraulics Number of Mid Selective Control Valves (SCVs)

Available Flow at Front SCVs (gpm)

Available Flow at Front SCVs (L/min)

SCV Control

Electronic

Auxiliary Hydraulic Features

Front Axle

Front Axle Type

1700 Series MFWD

Front Axle Differential Lock

Full-locking electrohydraulic (actuated at same time as rear diff-lock)

Rear Axle

Rear Axle Type

Flange

Rear Differential Lock

Full-locking electrohydraulic

Differential Control

Final Drive

Inboard planetary

Steering &Brakes

Steering Type

Hydraulic power-steering with electric pump back-up

Primary Brakes

Secondary Brake

Trailer Brakes

Parking Brake

Tires

Front Tires Size

Front Tread Spacing (in.)

Front Tread Spacing (mm)

Rear Tread Spacing (in.)

Rear Tread Spacing (mm)

Wheel Tread Range

Central Tire Inflation System (CTIS)

Tracks

Track Drive Type

Camso™ AG 4500 (MICHELIN® BIBTRACK® 150) Friction Drive

Track Tread Spacing

1,930.4 mm
76 in.
2,032 mm
80 in.
2,235.2 mm
88 in.
3,048 mm
120 in.

Track Width

419 mm
16.5 in.
457 mm
18 in.
609 mm
24 in.
762 mm
30 in.

Number Of Mid Rollers

Front: Two
Rear: Three

Electrical System

Battery Voltage (V)

Electrical System Voltage (V)

Battery Cold Cranking Amps (CCA)

1,900

Battery Capacity

Alternator Capacity

200 amp
Optional: 330 amp

Working Lights

18–24 light-emitting diode (LED)

Driving Lights

LED

Operator Station

ROPS Type

Gearshift Location

Db(A) Rating (dBA)

Seat Suspension

Air seat

Degree of Seat Swivel, Left Hand (degree (angle))

Degree of Seat Swivel, Right Hand (degree (angle))

Cab Suspension

Four-post cab suspension

Instructional Seat

Standard

Primary Display

G5ᴾˡᵘˢ Display - 325 mm
12.8 in.

Radio

AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna

Inner Cab Volume (cu ft)

114

Inner Cab Volume (m³)

3.24

Cab Glass Area (sq ft)

70.18

Cab Glass Area (m²)

6.52

Technology Integration

Guidance

Integrated AutoTrac™; Autonomy Ready (available in select regions)

Secondary Display

Receiver

Connectivity

JDLink™ hardware standard, activations, and Ethernet harnesses (availability dependent upon destination)

Remote Diagnostics

JDLink hardware standard

ISOBUS Ready

TIM Compatibility

Capacities

Fuel Tank Capacity (gal.)

244 (e23), 219 (EVT)

Fuel Tank Capacity (L)

924 (e23), 829 (EVT)

Diesel Exhaust Fluid (DEF) Tank Capacity (gal.)

9.8

Diesel Exhaust Fluid (DEF) Tank Capacity (L)

37.2

Cooling System Capacity (gal.)

11.2 (e23), 12.4 (EVT)

Cooling System Capacity (L)

42.3 (e23), 46.9 (EVT)

Transmission - Hydraulic System (gal)

66.1 (76/80 in. tread), 68.8 (88/120 in. tread)

Transmission - Hydraulic System (L)

250 (76/80 in. tread), 260.6 (88/120 in. tread)

Crankcase Oil Volume (gal)

Crankcase Oil Volume (L)

26.6

Dimensions & Weights

Wheelbase (in.)

127.36

Wheelbase (mm)

3,235

Base Machine Weight (lb)

43,300

Base Machine Weight (kg)

19,600

Overall Height (in.)

Overall Height (mm)

Transport Height (in.)

Transport Height (mm)

Overall Width (in.)

Overall Width (mm)

Overall Length (in.)

Overall Length (mm)

Ground Clearance (in.)

Ground Clearance (mm)

Front Axle Ground Clearance (in.)

Front Axle Ground Clearance (mm)

Drawbar Ground Clearance (in.)

Drawbar Ground Clearance (mm)

Maximum Ballast Level (lb)

44,100

Maximum Ballast Level (kg)

20,000

Maximum Permissible Weight (lb)

53,000

Maximum Permissible Weight (kg)

24,000

Additional Information

Country of Manufacture

United States

Date Collected

07-May-2026
